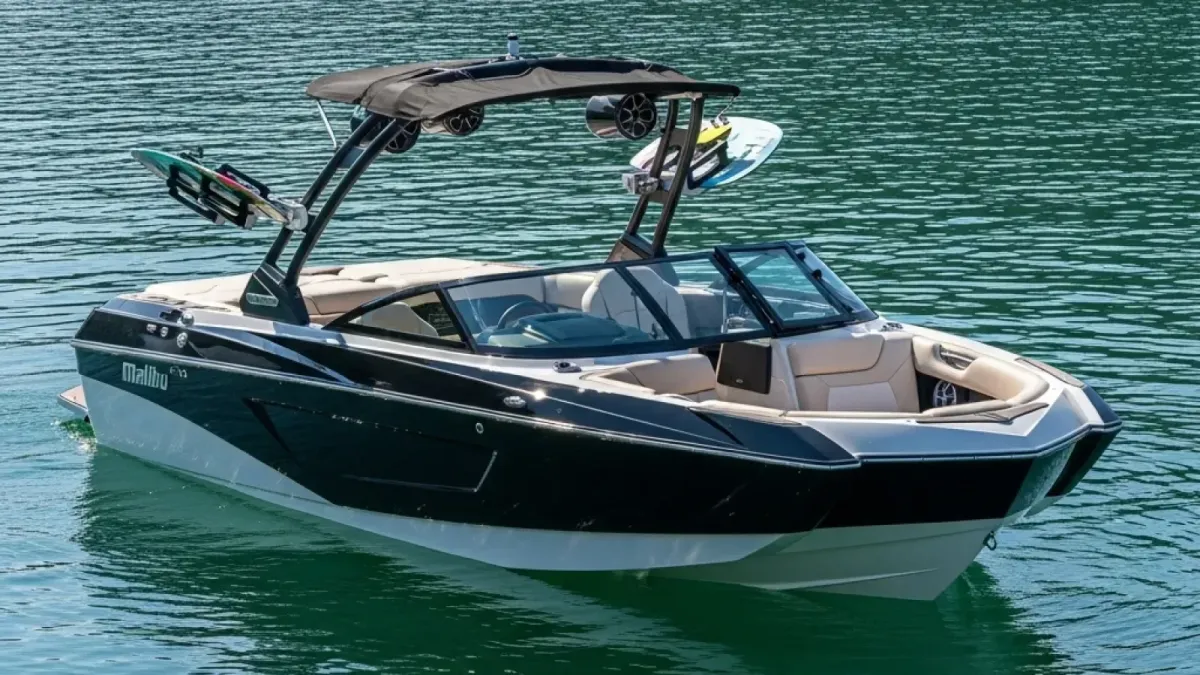

Quick answer: The Malibu Wakesetter 23 LSV remains the industry benchmark for watersports versatility, blending an adaptable Diamond or Wake Plus hull with up to 4,250 lbs of factory ballast, Surf Gate, and Power Wedge III. It generates professional-grade wakeboard ramps and endless, clean surf waves while accommodating 15 passengers in absolute comfort.
Design, Hull Specs, and Engineering Excellence
At the heart of the 23 LSV's performance is Malibu's engineered hull geometry. Buyers can select between two distinct running surfaces: the Wake Plus Hull, designed specifically for maximum water displacement to create massive wakes and waves, or the Diamond Hull, which offers a slightly flatter running surface aimed at multi-sport versatility and improved top-end speed. Molded from premium hand-laid fiberglass (GRP), the hull utilizes a rigid stringer system that minimizes flex when carving through heavy chop or bearing thousands of pounds of ballast water.
Measuring 23 feet in length overall with a wide 102-inch beam, the hull balances interior roominess with agility on the water. Draft sits at roughly 32 inches, requiring cautious navigation around shallow sandbars or unmapped shorelines. When evaluating high-performance ski and wakeboard boats, weight distribution is paramount. The dry weight of the 23 LSV rests around 5,200 pounds, providing a heavy foundation that cuts through water to build raw displacement before ballast tanks are even engaged.
Malibu integrates an internal sub-floor ballast network alongside available Plug 'n' Play auxiliary bags, yielding a total potential ballast load exceeding 4,250 pounds. Managing this fluid weight is handled via high-flow ballast pumps controlled directly from the dual-screen helm setup, allowing captains to transition from a light cruising setup to a fully loaded surf profile in under seven minutes.
Technical Specifications Overview
| Specification | Measurement / Detail |
|---|---|
| Length Overall (LOA) | 23' 0" (7.01 m) |
| Beam | 102 in (2.59 m) |
| Draft | 32 in (0.81 m) |
| Dry Weight | 5,200 lbs (2,359 kg) |
| Seating Capacity | 15 Persons |
| Fuel Tank Capacity | 65 gal (246 L) |
| Max Factory Ballast | 4,250 lbs (1,927 kg) |
| Standard Engine | Malibu Monsoon M5Di (360 hp / 400 lb-ft torque) |
| Hull Material | Fiberglass / GRP |
On-The-Water Performance: Wakeboarding vs. Wakesurfing
Underway, the 23 LSV showcases its dual personality. For wakeboarding, setting the Power Wedge III to position two or three pulls the stern down, ramping up a symmetrical wake with clean lips, firm shoulders, and smooth transitions. The wake remains clean across a wide spectrum of speeds, from entry-level pulls at 18 mph up to professional line speeds of 23.5 mph. Riders notice immediate pop off the crest without the steep, washing-out lip often found on hastily weighted aftermarket setups.
Wakesurfing is where Malibu's proprietary Surf Gate system truly shines. Hydraulic actuators deploy vertical tabs at the transom, creating a hydrofoil effect that delays convergence on one side, crafting a tall, clean wave with immense push on the opposite side. Drivers never need to shift passengers or unevenly dump ballast to lean the boat. A simple toggle switch at the helm—or via the wrist-worn Surf Band controller worn by the rider—shifts the wave from left to right in under three seconds, making transfer tricks seamless.
On-the-water tip: Don't make the common beginner mistake of running max ballast and pulling the Power Wedge III past position 4 when pulling beginner wakeboarders. This over-buries the stern, creating a wide, steep wake that intimidates novice riders and wastes fuel. Set the wedge to position 1 or 2, keep ballast at 50%, and maintain a crisp 19-20 mph speed to give them a wide, stable ramp to learn on.
| Feature | Details |
|---|---|
| Length | 23 feet |
| Seating | Up to 15 passengers |
| Weight | ~5,000+ lbs dry |
| Weight with Trailer | ~6,000+ lbs |
| Horsepower | 400–450 HP |
| Ballast | Thousands of pounds |
| Surf System | Malibu Surf Gate |
| Price Range | Six figures, depending on options |
Engine Powerplants and Towing Capability
Powering the 23 LSV is the direct-injected Malibu Monsoon engine family, built in-house to deliver low-end grunt tailored specifically for heavy towing applications. The standard powerplant is the Monsoon M5Di, producing 360 horsepower and 400 lb-ft of torque. For high-altitude lakes or owners who regularly run maximum ballast with a full crew of 15, stepping up to the Monsoon M6Di (430 hp / 460 lb-ft torque) or the supercharged LT4 (607 hp) ensures quick hole shots without straining the drivetrain.
Equipped with a custom-pitched 4-blade prop, the M6Di brings the 23 LSV onto plane smoothly, even with over 9,000 pounds of combined boat, fuel, passenger, and ballast weight. Steering response remains light and predictable thanks to a dual-rudder tracking fin array underneath, keeping the hull tracking dead straight during aggressive rider pulls. Understanding basic marine engine maintenance practices will ensure these high-torque direct-injection engines operate efficiently across hundreds of engine hours.
Cockpit Ergonomics, Layout, and Helm Controls
Stepping aboard the 23 LSV reveals a interior engineered for all-day comfort. The helm features the Malibu Command Center, utilizing dual high-definition touchscreens that manage ballast, surf gates, speed control, and onboard audio. The layout eliminates clutter, giving the driver immediate tactical control over every performance variable. Deep sightlines over the bow remain clear even when running heavily bow-light ballast configurations, thanks to adjustable seat bolsters and auto-adjusting trim options.
Passenger seating flexibility is central to the LSV design philosophy. The cockpit features wrap-around lounge seating with plush marine-grade vinyl, resistant to UV degradation and mold. The star of the interior is the rear-facing Max-Pivot bench seat, which slides forward on stainless steel tracks and converts into a rear-facing spectating station, complete with a drop-in table configuration or backrests for watching the action behind the boat.
- Dual Touchscreen Dash: Streamlined intuitive control for ballast, speed, and audio systems.
- Max-Pivot Rear Bench: Converts standard wrap-around cockpit seating into rear-facing rider viewing.
- Wet Sounds Audio System: Multi-zone marine sound system engineered specifically for open-water acoustic projection.
- Wireless Phone Charging: Strategic phone cradles throughout the cockpit keep devices secure and powered.
- Flip-Up Transom Seats: Integrated rear-facing seats mounted on the transom step for lounging while anchored.
Real-World Ownership: Towing, Fuel Economy, and Maintenance
Owning a premium wake boat requires practical preparation ashore. The total trailering weight of a Malibu Wakesetter 23 LSV—combining dry hull weight, tandem-axle custom trailer, full 65-gallon fuel tank, and basic gear—approaches 7,200 to 7,500 pounds. Tow vehicles should be rated for a minimum 8,500-lb towing capacity, typically requiring a full-size half-ton or three-quarter-ton truck. Proper hitch setup, surge or electric-over-hydraulic brakes, and checking local highway regulations are imperative before hauling long distances.
Fuel consumption during active surf sessions with heavy ballast averages 6 to 9 gallons per hour depending on engine selection and wave aggressiveness. cruising across the lake at 24 mph reduces burn significantly, giving the 65-gallon fuel cell plenty of range for full weekend outings. Always ensure your vessel carries USCG-compliant safety equipment, including proper PFDs for all riders, fire extinguishers, flares, and a functional EPIRB when navigating larger open bodies of water. Check out our detailed guide on essential boat safety gear requirements before setting out on the water.
Expert Recommendation
If you are looking for a world-class towboat that satisfies both die-hard wakesurfers and technical wakeboarders without compromising on interior luxury, the Malibu Wakesetter 23 LSV should sit at the top of your test-drive list. For buyers living at higher elevations or routinely running max ballast with large crews, spec the boat with the Monsoon M6Di engine and high-altitude prop pitch right from the factory. Contact your local Malibu dealer ahead of the spring boat show season to schedule a wet demo, as on-the-water testing remains the absolute best way to feel how effortlessly Surf Gate and Power Wedge III shape the water.
Frequently Asked Questions
What is the difference between the Diamond Hull and Wake Plus Hull on the 23 LSV?
The Wake Plus Hull is engineered purely for maximum displacement, producing larger, steeper wakes and surf waves. The Diamond Hull features slight chine modifications to offer a flatter wake at higher skiing speeds and improved directional tracking for multi-sport families.
How many people can comfortable fit on the Malibu 23 LSV?
The 23 LSV is USCG-certified for up to 15 passengers. Its wide beam and deep cockpit design offer ample seating and storage space for a full crew and their gear.
Can I pull water skiers behind the Malibu Wakesetter 23 LSV?
Yes, especially when equipped with the Diamond Hull and with all ballast drained and Power Wedge III stowed. While it creates a larger wake than a dedicated direct-drive ski boat, it is more than capable of recreational slalom skiing.
How heavy is the Malibu 23 LSV when towing on a trailer?
Expect a total towing weight between 7,200 and 7,600 lbs when factoring in dry weight, custom tandem-axle trailer, fuel, and gear. Ensure your tow vehicle is rated for at least 8,500 lbs.
